Vessel Detail

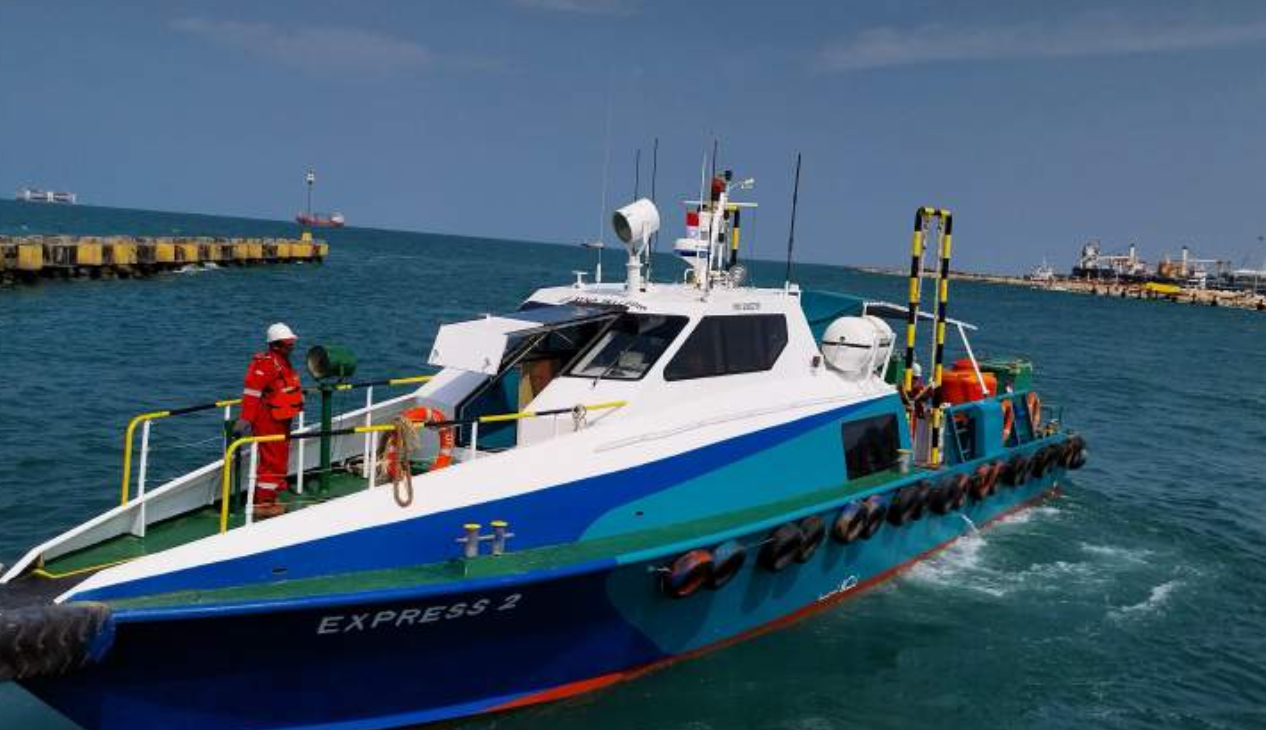

CB. EXPRESS 2
Crew Boat
Crew Boat
CB. EXPRESS 2
Ship Particular
Year Built
2004
Place Built
Australia
Owner
PT. Armada Cakrawala Esa
Call Sign
YDA4678
IMO Number
8982230
Design
SBF Shipbuilding
Flag
Indonesia
Length Overall
20.83 m
Length BP
19.00 m
Breadth Moulded
4.80 m
Depth Moulded
1.35 m
Draft (max)
0.7 m
Freeboard (SLL)
0.32 m
Class
BKI
Notation
I + Hull + Mach, Crew Boat, Unrestricted Navigation
GRT / NRT
31.00 T / 10.00 T
Deadweight
28.76 T
Clear Deck Area
18.00 m2
Deck Carrying Load
Nil
Deck Strength
0.50 T/m2
Maximum Speed
25 Knots @ 5.5 MT/24 hrs
Economic Speed
17 Knots @ 4.5 MT/24 hrs
Main Engines
2 x Caterpillar C12570 BHP, 425 kW @2300 RPM, 1140 BHP
Auxiliary Engines
1 x Yanmar, 4 TNE 94-G, 1 x 25 HP 1 x Perkins, GN71134R, 1 x 20 HP
Propellers
2 x Fixed Pitch Propellers
Steering Gear System
2 Units
Rudder
2 Units
Passenger Seats
10-12 Person
Crew
1x6, 1x2 = 8
Galley
1 Room
Cabin Crew
6 Person
Emergency Fire Pump
SOLAS Compliant
CO2 Fi-Fi System
CO2 cylinder
Fire Detection & Alarm
Fixed Fire Detection System
Life Rafts
2 x 15 men
Rescue Boat c/w Davit
Nil
Fuel Oil
9.00 m3
Economic Speed Oil
2.00 m3
