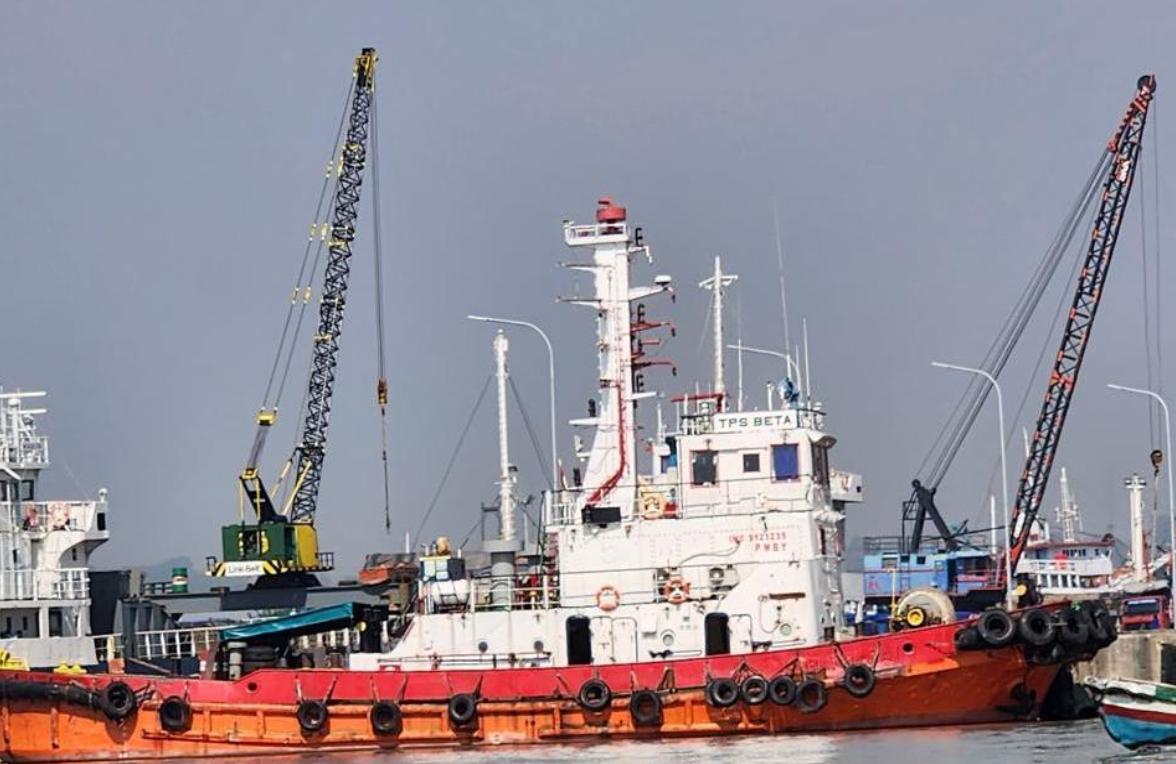

Vessel Detail
TPS BETA
TUG BOAT
TUG BOAT
TPS BETA
Ship Particular
Ship Owner
PT. Armada Cakrawala Esa
Call Sign
PMBY
IMO Number
9121235
Classification
Biro Klarifikasi Indonesia
Flag
Indonesia / Jambi
Year Build
1994
Class Notation
Tug
Speed
10 Knots
Bollard Pull Capacity
40.13 MT
Complement
10 Men
LOA
32.83 m
Breatdh
9.50 m
Depth
4.30 m
Draft (Design)
3.40 m
GRT
325 T
NRT
98 T
Fuel Oil
55.26 m3
Fresh Water
20 m3
Dispersant
990 Liters
Foam
12.3 m3

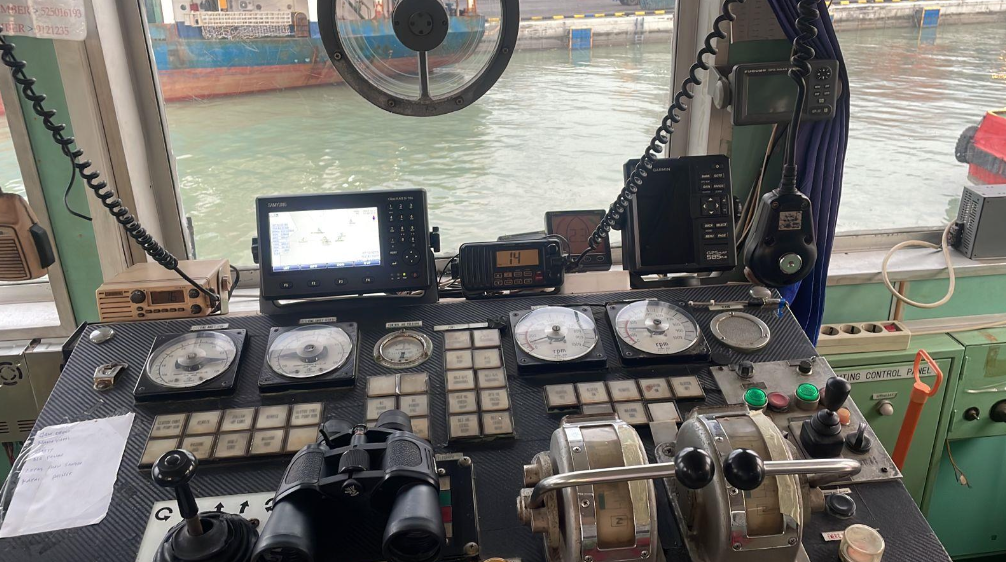

VHF Radio Marine
1 x Icom IC-M412, 1 x MC 635
MF/HF Marine Trans
1 x Icom IC-M700
Radar
1 x Furuno RDP1715
Echo Sounder
1 x Furuno 1000
GPS
1 x Garmin 585 Plus
AIS
1 x Samyung SI-70A
SART
1 x NRT-1000
EPIRB
1 x NEB 2000 C
Magnetic Compass
1 x SR 3
Navtex
1 x Nvx-1000
Portable VHF
2 x Icom IC-M36
PA System
1 x Toa YDA 1-C
Diesel Engine Driven
Isuzu UM6SD1TXC 285 HP x 2000 rpm
FIFI Pump
360 m3/hr x 150 head CP 150 – 50
Fire Monitor 1
1 x 240 m3 4000Ltrs/min
Fire Monitor 2
1 x 120 m3 2000Ltrs/min
Fire Extinguisher 1
3 x Cyl Dry Powder 4,5kg
Fire Extinguisher 2
2 x Cyl Dry Powder 9Kg
Fire Extinguisher 3
3 x Cyl Foam AB 9Ltrs
Fire Extinguisher 4
1 x Cyl Foam AB 45Ltrs
Fire Extinguisher 5
7 x Cyl CO2 Portable 5Kg
Spray Boom
2m x 5m
CO2 System
6 x Cyl CO2 System 45Kg

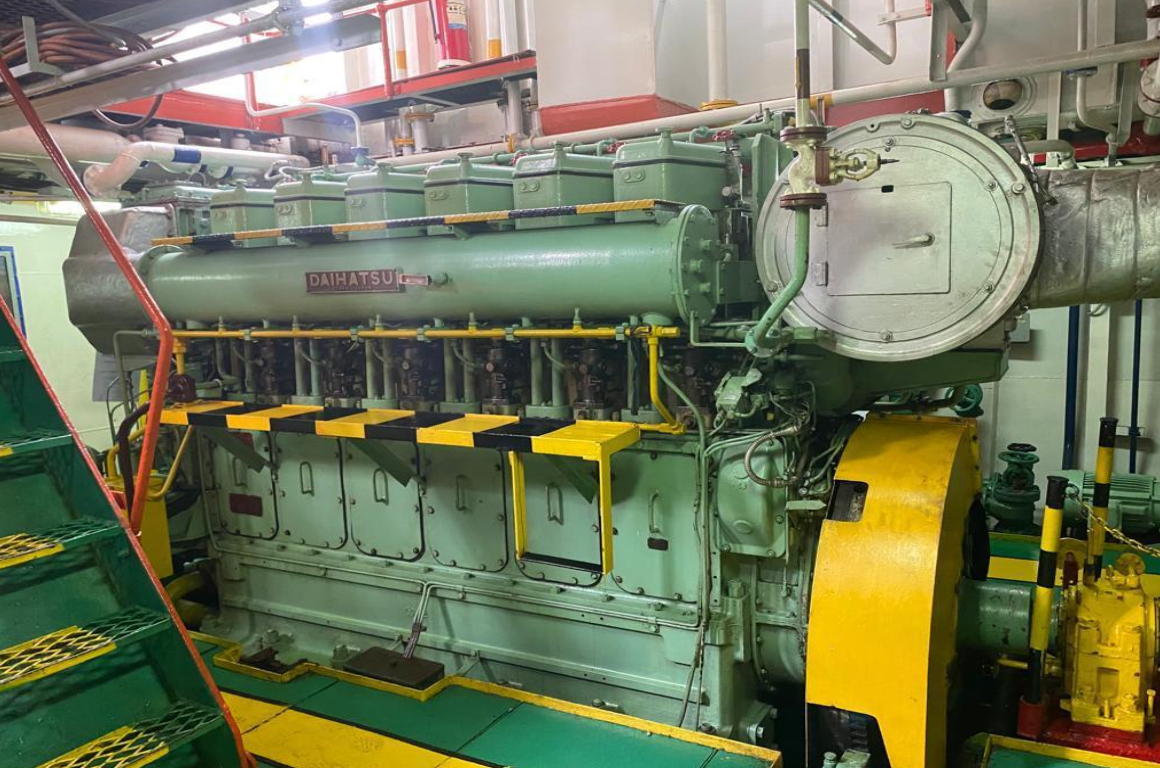

Main Engine
2 x 1600 HP @750 Rpm Daihatsu 6DLM-26
Propulsion
2 x Kawasaki Rexpeller KST-165 ZF/A

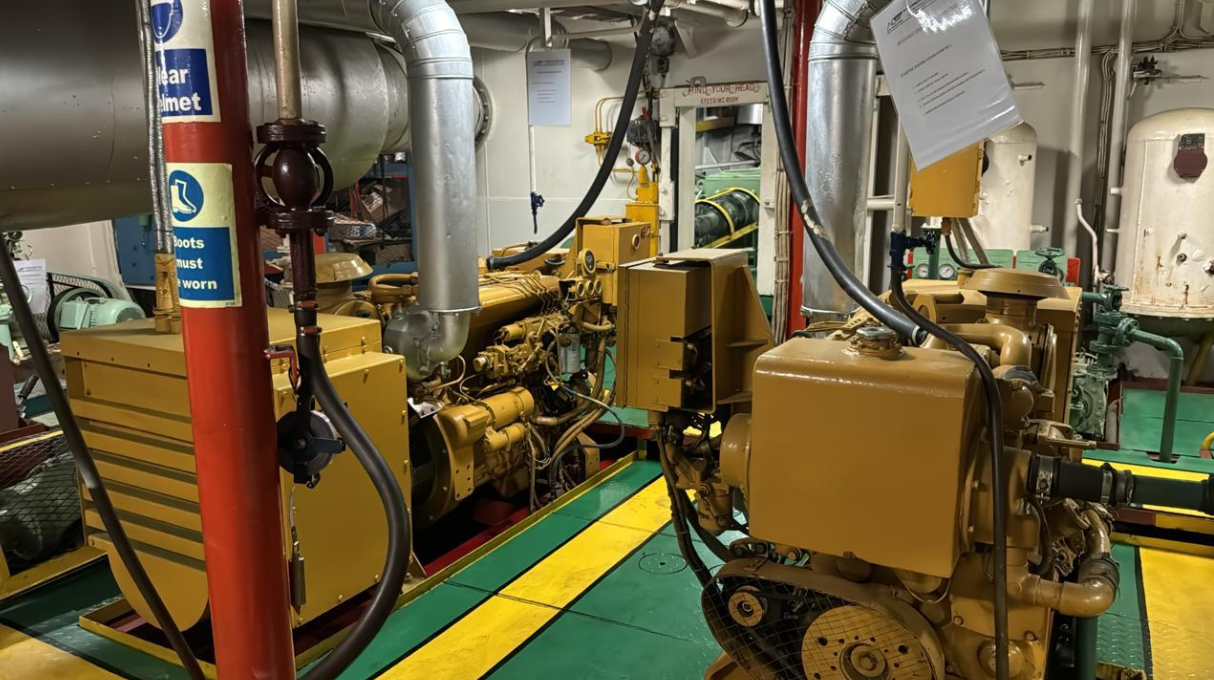

Aux Engine
2 x 102HP,Caterpillar SR4
Alternator
2 x 94 kVa, 380 V, 50 Hz, Caterpillar SR4
Windlass
Plimsol Robertson 2.4 T x 10m/min
Brake Hold
13MT Static Windlass
Mooring Winch
2MT x 13 m/min
Drum Cap
100m x 90mm Ny.Rope
Brake Hold
50 MT Static Wich
Towing Hook
SWL 50 T
Life Raft
2 x HYF – A10 10Person
Life Jacket
14 Pcs
Life Buoy
8 Pcs
Pyrotechnic 1
2 Pcs Line Throwing
Pyrotechnic 2
6 Pcs Rocket Pacachute
Pyrotechnic 3
6 Pcs Red hand Flare
Pyrotechnic 4
2 Pcs Bouyance Smoke
